6. Scott addict LTD, 3.17kg..

업힐전용으로 1x7단으로 꾸민 자전거입니다.

7파운드 이내로 만들려고 고생 좀 한듯... ㅎㄷㄷ

이정도 체급 자전거는 부품들을 다 개조하고 자작해 놔서 봐도 별로 도움은 안 됩니다;

Frame: Addict 54cm tuned 703.4g

Fork: Edge 1.0 261g

Headset: Custom alu/delrin 32.1g

BB : Turcite bearing/ TiS2 coated alu spindles 18.1g

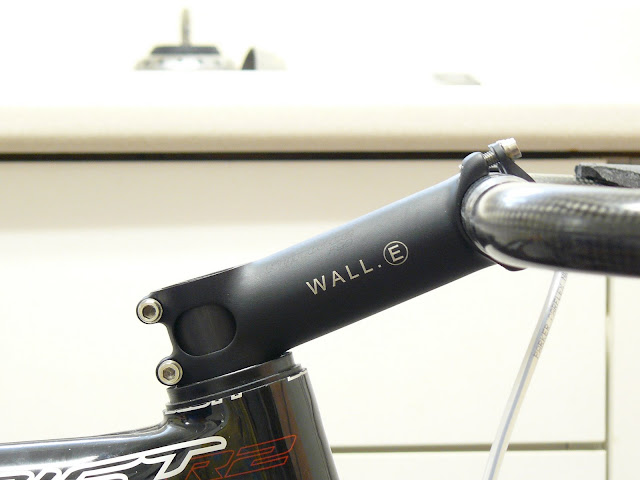

Stem: F99 tuned 81.8g

Bars: Schmolke SL cut 114.4g

Bar tape: 1/4" foam + contact cement 1.6g

Seat clamp: Scott tuned 6.6g

Seatpost/Saddle: Samu special combo 97.2g

Brake lever: Tektro crosstop tuned 18.8g

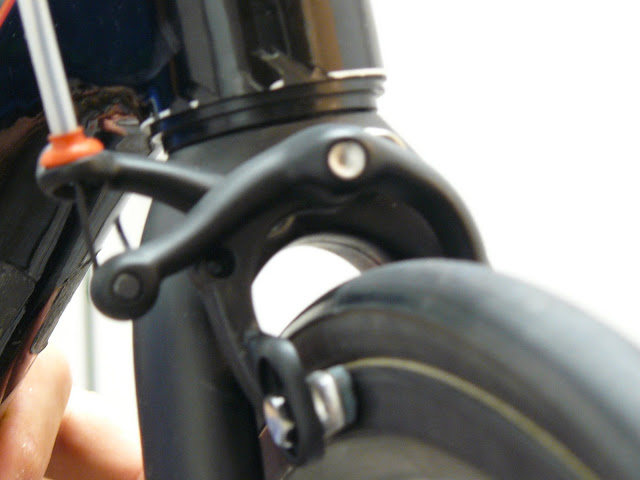

Brake: CLB compact tuned 54.7g

Brake cable: plastic/powercordz 3.65g

Shift lever: BTP carbon/campy tuned 6.1g

Shift cable: plastic/powercordz 4.8g

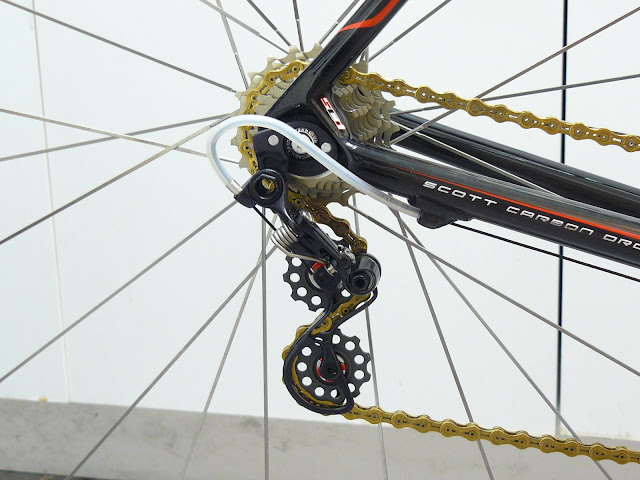

Rear Deraileur: Huret jubilee ultra tuned 66.7g

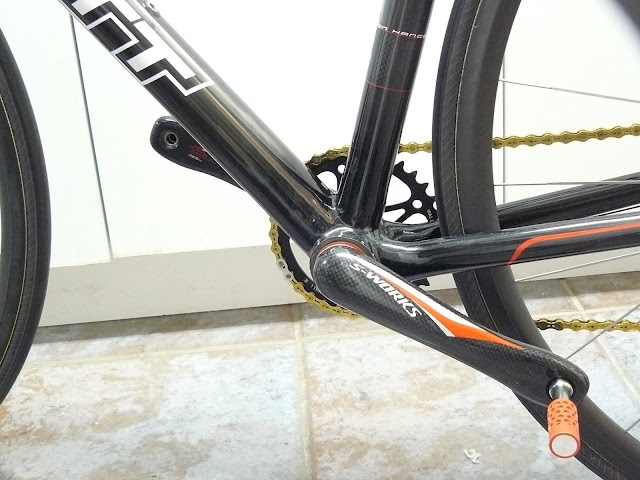

Crank: Specialized S-works tuned 314.3g

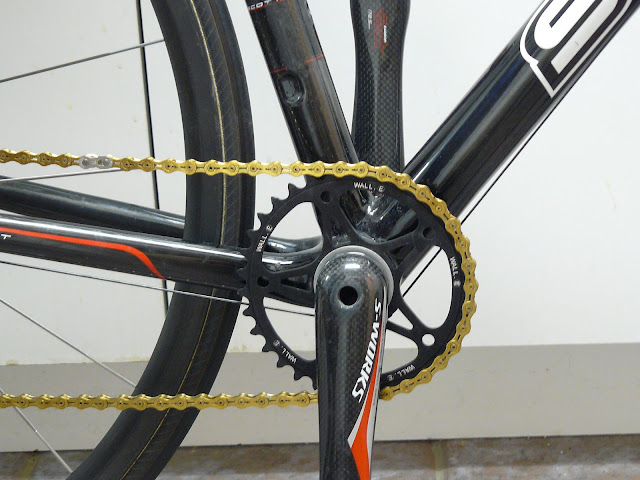

Chainring: Custom ring-spider combo 34T 47.4g

Chain: KMC X10SL 210.9g

Pedals: Aerolite 1988 tuned 68g

Tires: Tufo elite 120 237.7g

Wheelset: 713.1g

Edge 1.25 188/190g

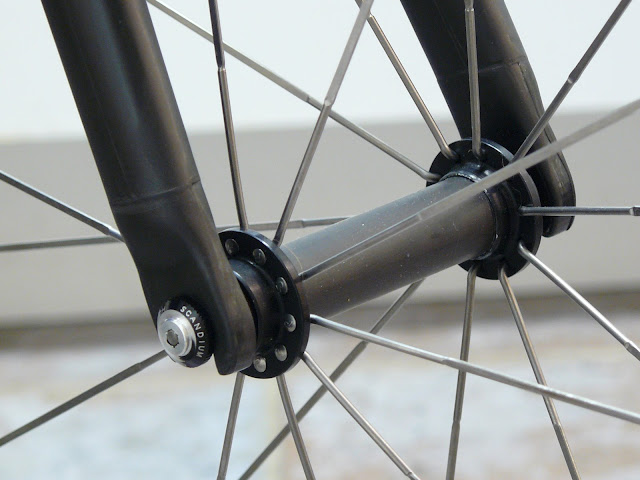

Custom hubs 42.6/127.5g

Pillar ti spokes/alloy nipples

QR: controltech race tuned 27.4g

Cassette: alloy 13-21 7 speed 77.8g

Lockring: Hi-e delrin 2.75g

-------------

3170.3g

출처 : http://cafe.naver.com/minisprinter.cafe?iframe_url=/ArticleRead.nhn%3Farticleid=21385

작성자 : 토실..
